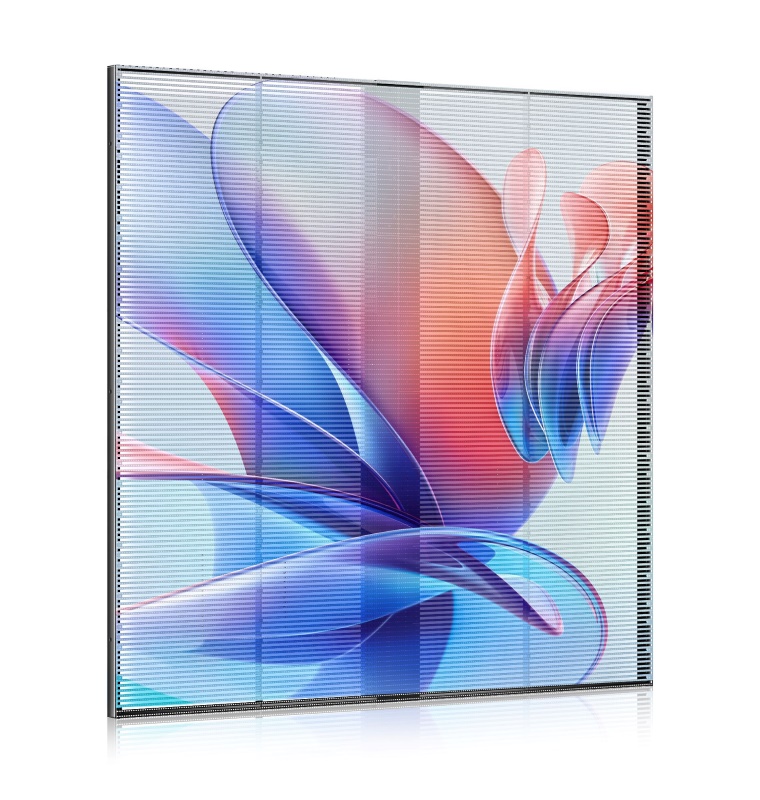

A LED Display with high brightness helps you deliver clear advertising messages in environments where sunlight, ambient lighting, and viewing distance affect screen visibility. However, choosing a display for a glass façade, retail storefront, or outdoor event involves more than brightness alone. You also need to consider transparency, panel weight, refresh rate, weather protection, and installation requirements. LED King’s HD Indoor Outdoor P8.3-12.5 LED Transparent Display Screen Video Wall combines a white-balance brightness of at least 6,000 cd/m² with up to 45% transparency and a lightweight panel design of 15 kg/m². These specifications make it a potential solution for commercial displays that need to balance visual impact with light transmission. In this guide, you will learn how its technical features support different applications and what to check before selecting a display for your project.
What Makes a High Brightness LED Display Suitable for Commercial Projects?
A High Brightness LED Display is useful when your content must remain visible in brightly lit environments. Nevertheless, the right configuration depends on viewing distance, installation location, ambient light, and the type of content you want to show.
LED King manufactures indoor and outdoor full-color SMD LED displays and supports OEM projects, including customized sizes and logos. Its P8.3-12.5 transparent model offers several features for commercial installations.
Key Specifications of the P8.3-12.5 Transparent LED Display
| Specification | Product Details |
|---|---|
| Pixel pitch | 8.3 mm × 12.5 mm |
| Module size | 1,000 × 1,000 mm |
| Pixel density | 9,600 dots/m² |
| White-balance brightness | ≥6,000 cd/m² |
| Screen transparency | ≤45% |
| Panel weight | 15 kg/m² |
| Refresh rate | 3,840 Hz |
| Viewing angle | 160° |
| Maximum power consumption | ≤800 W/m² |
| Typical power consumption | ≤240 W/m² |
| Operating temperature | -20°C to 55°C |
| Protection rating | IP67 |
| Stated lifespan | 100,000 hours |
These specifications provide a starting point for evaluating the display. Actual power consumption depends on operating conditions and content, while the stated lifespan should be treated as a manufacturer specification rather than a guaranteed service life.
How Does LED Display with High Brightness Improve Visibility?
Brightness matters when you install screens near windows, building façades, or outdoor advertising areas. With a specified brightness of at least 6,000 cd/m², this model is designed for applications that require strong visibility under bright ambient conditions.
Balance Brightness and Transparency
The screen has a specified transparency of up to 45%, allowing some natural light to pass through the display structure. This can be useful for retail windows and glass façades where you want to show promotional content without completely blocking the view behind the screen.
Consider this configuration when you need to:
- Display promotions across a storefront window.
- Present branded visuals in a commercial building.
- Combine digital advertising with architectural glass.
- Create a large-format video wall using modular panels.
Because the product specification states transparency as “≤45%,” confirm the actual transparency of your selected configuration before finalizing the design.
Support Smooth Visual Content
The 3,840 Hz refresh rate supports the presentation of moving images, promotional videos, and animated graphics. The 160° viewing angle also helps audiences view content from different positions, although actual viewing quality depends on installation geometry and ambient lighting.
Indoor vs. Outdoor Applications: Which Configuration Should You Choose?
The P8.3-12.5 model is positioned for indoor and outdoor use. However, your installation environment determines which specifications deserve the most attention.
| Evaluation Factor | Indoor Retail or Exhibition | Outdoor Advertising or Façade |
|---|---|---|
| Brightness | Match brightness to indoor lighting and window exposure | Evaluate direct sunlight and ambient brightness |
| Transparency | Preserve natural light and visibility through glass | Consider the façade design and viewing requirements |
| Protection | Assess dust, moisture, and cleaning conditions | Verify IP67 applicability to the complete installed system |
| Viewing distance | Confirm suitability for typical customer distances | Evaluate the specified 10–80 m viewing distance |
| Structure | Check mounting space and support capacity | Account for wind loads and structural requirements |
| Customization | Coordinate screen dimensions with interior design | Confirm dimensions, mounting, and maintenance access |
An IP67 rating indicates dust protection and resistance to temporary immersion under specified test conditions. It does not automatically establish that every installation is suitable for every outdoor environment. Ask LED King to confirm the protection rating of the complete screen assembly, connectors, power components, and installation method.
How to Select the Right Transparent LED Video Wall
Follow these steps before placing an order to reduce specification gaps and installation issues.
1. Define your application. Identify whether you need a retail window display, architectural façade screen, exhibition installation, or outdoor advertising wall.
2. Measure the installation area. Calculate the required width and height, then confirm how the 1,000 × 1,000 mm modules fit your planned layout.
3. Confirm viewing distance. The product lists a recommended viewing distance of 10–80 m. Ask for a demonstration or visual assessment if viewers will stand closer.
4. Review power and structural requirements. Use the maximum power figure of 800 W/m² for preliminary electrical planning, and have qualified personnel verify circuit capacity, heat management, and mounting loads.
5. Request a customized proposal. Provide your drawings, screen dimensions, installation location, and content requirements. LED King supports OEM customization, including logos and screen sizes, and lists free CAD drawings and technical support among its service offerings.
Why Consider LED King for Your Display Project?
Shenzhen LED King Technology Co., Ltd. focuses on LED display research and development, manufacturing, and sales. The company reports a 1,500 m² panel assembly workshop, SMT production equipment, and a technical team with more than 14 years of LED display experience.
Its product range includes indoor and outdoor LED displays in pixel pitches such as P1.5, P2.5, P2.9, and P3.9, alongside customized display solutions. The company also identifies Kinglight, Nationstar, and Novastar as major business partners.
For project evaluation, you can request:
- Technical documentation: Detailed specifications, power requirements, and installation guidance.
- Design support: CAD drawings for layout planning.
- Customization: Logo integration and tailored screen dimensions.
- After-sales assistance: Technical consultation and troubleshooting support.
LED King also lists qualification certificates and a product testing system. Before purchasing, request the specific certificates, their validity periods, and any applicable test reports for your intended installation.
FAQ
1. Is this high brightness transparent LED display suitable for outdoor use?
The product is marketed for indoor and outdoor applications, with a specified brightness of at least 6,000 cd/m² and an IP67 rating. Confirm the environmental limits and protection of the complete installation before outdoor deployment.
2. What does the P8.3-12.5 pixel pitch mean?
It refers to the product’s stated horizontal and vertical pixel spacing of 8.3 mm and 12.5 mm. This configuration is generally intended for larger displays viewed from greater distances. Check the expected viewing distance and content detail before selecting it.
3. Can LED King customize the screen size and branding?
Yes. LED King states that it supports OEM projects, customized screen sizes, and logo customization. Share your project drawings and requirements to confirm the available configuration.
Conclusion
A LED Display with high brightness can help you present advertising and visual content in bright commercial environments while maintaining the benefits of a transparent screen. LED King’s P8.3-12.5 model combines a specified brightness of at least 6,000 cd/m², a 3,840 Hz refresh rate, a panel weight of 15 kg/m², and an IP67 protection rating. Before choosing this High Brightness LED Display, confirm the actual transparency, viewing distance, power requirements, structural support, and outdoor installation conditions to ensure the specifications match your project.
